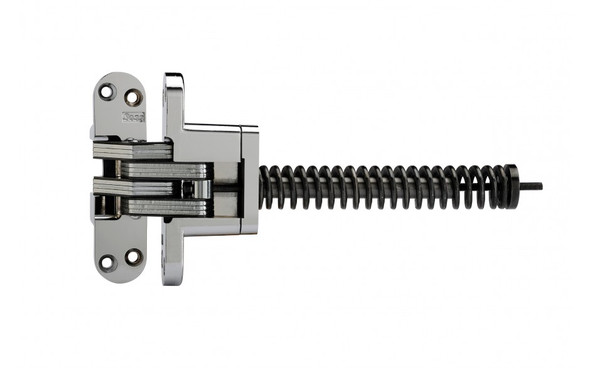

SOSS© Invisible Hinge model #220IC is ideally suited for most types of doors. It features a spring closer that is totally invisible from either side of the door when it is closed, and you can completely adjust the closure rate with an allen wrench even after installation is complete. You don't even have to remove the spring closer to do it! The model #220IC is flexible too--you can install the spring closer either inside the door itself or inside the door jamb. SOSS© Invisible Hinges open a full 180° and are single action. Wood screws included.

Installation instructions:Allow one spring closer for every 75 lbs of door weight. Please reference the nomograph (p. 6 of the SOSS hinge spec sheets .pdf download on this page) for total number of hinges required. Recommended spacing for use of one spring closer is half of the distance from the center of the door to the center of the top hinge. Please reference hinge spacing drawing for multiple closers.

For more information on installing SOSS© invisible door hinges, including information on how to use the template and router guide (three each and four each), check out the SOSS© hinge installation guide video.

The SOSS© Invisible Hinge model #218 is a full-size door hinge for use in wood or metal applications

Notes:
For wood or metal door applications
Satin nickel finish
Wood screws included
See attached .pdf files for additional information
Check out the SOSS© hinge installation guide video.

Exact measurements (see secondary image):
A = 1-41/64"
B = 3/8"
C = 7"
D = 1"

*This product ships directly from the manufacturer. Time to ship is 2-3 days.*
