KV (Knape & Vogt)

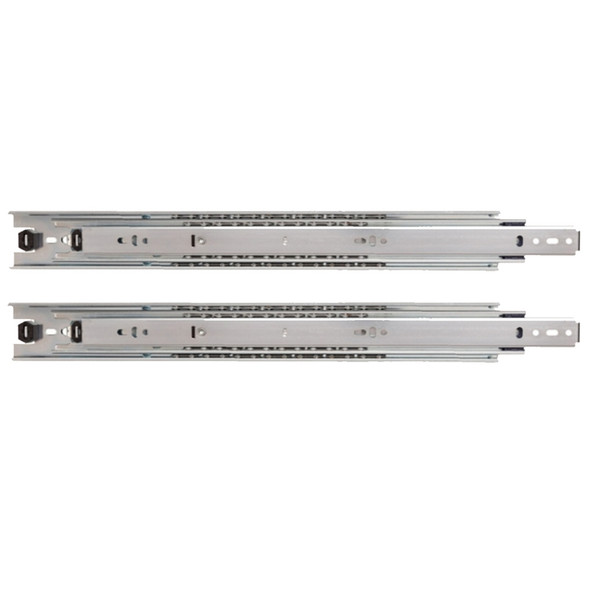

14" Heavy-Duty, Full-Extension, Side-Mount Drawer Slide w/ 200 Lb. Capacity

No reviews yet Write a Review
Ask Questions

14" Heavy-Duty, Full-Extension, Side-Mount Drawer Slide w/ 200 Lb. Capacity

$42.3000
  • SKU: KV.8810B14
In Stock & Ready To Ship!
Current Stock:Only left:
Description

The 8810 Heavy-Duty Full Extension Drawer Slides are designed to accommodate wider and heavier drawers for today's challenging applications in the commercial, residential and educational markets. Replaces the discontinued KV8800 series.

Applications:- Wood residential, commercial, and office furniture- Architectural, laboratory and school casework- Stores fixtures, medical carts- Residential kitchen cabinetryRating:- Load: 200 lb.- Max. Drawer Width: 42"- Flat Load Rating: 100 Lb. - load rating based on an 18" slide mounted in a 24" wide drawer cycled 10,000 times.- As with all Knape & Vogt drawer slides, the 8810 series is designed to meet or exceed ANSI performance standards established by BIFMA, BHMA and KCMA.Features:- Sold as a pair- Type: ball-bearing, telescopic operation- Heavy-duty 200 Lb. Weight Capacity- Travel: full-extension- Finish: zinc plated- Clearance:ᅠ.75" + .03" - 0" on each side (3/4" side clearance)- Height: 2.09" (53mm)- Slide configuration: unhanded- Mounting: side mount- Hole pattern: 32mm and traditional- Disconnect: butterfly lever release- Face frame mounting: Slide must be blocked out. See face frame diagram and do not use a rear bracket.- Recommended Screws: #8 or #10 x 5/8" Phillips Flatheadᅠ- SKU# 0.FPC08* (Not Included)

* 3/4" Clearance Needed Per Side. 2" Height
